Samsung QM43R Digital signage flat panel 109.2 cm (43") LED Wi-Fi 500 cd/m² 4K Ultra HD Black Built-in processor Tizen 4.0 24/7
- Dynamic Crystal Colour
- UHD Resolution
- Intelligent UHD Upscaling
| SKU | LH43QMREBGCXEN |
|---|---|
| Manufacturer | Samsung |
| Availability | In Stock |
| PDF URLs |
View PDF |
| Display | |
|---|---|
| Dynamic contrast ratio marketing name | Mega Contrast |
| Display number of colours | 16.78 million colours |
| LED backlighting type | Edge-LED BLU |
| Touchscreen | No |
| Active display area (W x H) | 941.184 x 529.416 mm |
| Display technology | LED |
| Colour gamut | 92% |
| Display diagonal | 109.2 cm (43") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 4000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.2451 x 0.2451 mm |
| Display diagonal (metric) | 108 cm |
| Vertical scan range | 48 - 75 Hz |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 30 - 81 kHz |
| Haze rate | 0.44% |
| Pixel frequency (max) | 594 MHz |
| Ports & interfaces | |
| Remote (IR) input | 1 |
| HDBaseT port | No |
| USB port | Yes |
| HDMI version | 2.0 |
| RS-232C | Yes |
| Wi-Fi | Yes |
| PC Audio in | Yes |
| DisplayPorts quantity | 1 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) input ports | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 interface | Yes |
| USB version | 2.0 |
| USB ports quantity | 2 |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Bezel width (top) | 9.2 mm |
| Bezel width (side) | 9.2 mm |
| Bezel width (bottom) | 1.12 cm |
| Product colour | Black |
| Panel mounting interface | 200 x 200 mm |
| Certification | 60950-1 |
| VESA mounting | Yes |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| Wi-Fi | Yes |
| Power | |
| Heat dissipation | 375.1 BTU/h |
| Power consumption (sleep) | 0.5 W |
| Annual energy consumption | 108 kWh |
| Power consumption (typical) | 110 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A+++ to D |
| Energy efficiency class (SDR) | G |
| Computer system | |
| Computer system | Yes |
| Processor cores | 4 |
| Processor family | ARM Cortex |
| Processor model | A72 |
| Processor frequency | 1.7 GHz |
| Operating system installed | Tizen 4.0 |
| Internal memory | 2.5 GB |
| Internal storage capacity | 8 GB |
| Video formats supported | AVC, AVS, H.263, H.264, HEVC, MPEG1, MPEG2, VC-1, VP8, VP9 |
| Audio formats supported | AC3 |
| Image formats supported | JPEG, PNG |
| Built-in processor | Yes |
| Weight & dimensions | |
| Width | 967.5 mm |
| Depth | 48.3 mm |
| Height | 557.7 mm |
| Weight | 10 kg |
| Weight (with stand) | 10 kg |
| Display width | 967.5 mm |
| Display depth | 48.3 mm |
| Display height | 557.7 mm |
| Packaging data | |
|---|---|
| Package width | 1095 mm |
| Package depth | 151 mm |
| Package height | 676 mm |
| Package weight | 13.3 kg |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | AC |
| Packaging content | |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | AC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Certificates | |
| Certification | 60950-1 |
| Technical details | |
| VESA mounting | Yes |
| DVI input ports | 1 |
| Video out | Yes |
| LED backlighting type | Edge-LED BLU |
| Stand | STN-L4355F |
| Weight (with stand) | 10 kg |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | Electromagnetic Compatibility (EMC) |
| Network | |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Thin Client | |
| Processor family | ARM Cortex |
| Processor model | A72 |
| Processor frequency | 1.7 GHz |
| Operating system installed | Tizen 4.0 |
| Internal memory | 2.5 GB |
| Internal storage capacity | 8 GB |
| Video formats supported | AVC, AVS, H.263, H.264, HEVC, MPEG1, MPEG2, VC-1, VP8, VP9 |
| Audio formats supported | AC3 |
| Image formats supported | JPEG, PNG |
| Other features | |
| DVI input ports | 1 |
| HDBaseT port | No |
| Video out | Yes |
| Wi-Fi | Yes |
| Display technology | LED |
| Bluetooth | Yes |
| Bezel width (top) | 9.2 mm |
| Bezel width (side) | 9.2 mm |
| Bezel width (bottom) | 1.12 cm |
| Audio input | Yes |
| Annual energy consumption | 108 kWh |
| Weight (with stand) | 10 kg |
| Energy efficiency scale | A+++ to D |
| Energy efficiency class (old) | B |

Time to upscale your display
Samsungs new QMR displays cut through the clutter to deliver best-in-class UHD resolution, as well as intelligent UHD upscaling and rich flawless colours with Dynamic Crystal Colour - all in a slim design.

Incredible 4K picture quality
Samsungs new QMR series provides ultra high-definition 4K resolution, creating lifelike images with sharper picture quality than ever before.

Intelligent UHD upscaling
Samsungs cutting-edge intelligent UHD upscaling technology performs edge restoration and noise reduction to deliver perfect UHD picture quality even with lower resolution content. This “future-proof” solution ensures best-in-class picture quality regardless of the original content resolution.

Dynamic Crystal Colour
The QMR series features Dynamic Crystal Colour, using 10 bit processing for flawless colour expression, allowing viewers to enjoy a wider spectrum of colours up to one billion shades. HDR+ functionality converts standard definition content to HDR quality for sharper contrast and more vivid colours.

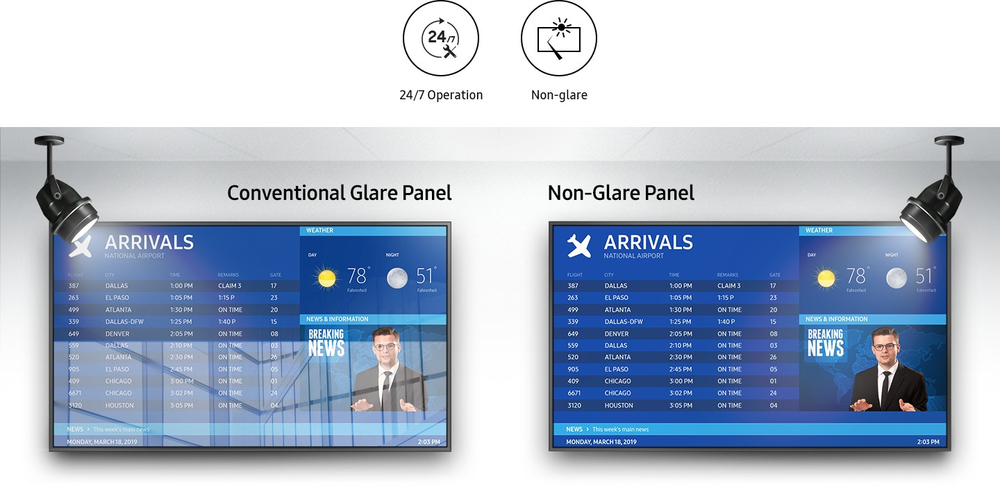

Perfect view with non-glare display
The QMR series features reliable, non-glare panels that provide better visibility from all angles, anytime of day. This allows businesses to deliver accurate information 24/7 in locations where clear and accurate information is crucial, such as airports and commuter stations.

Slim and symmetrical design
The QMR series features an all-new symmetric design simplifying wall mounting and ensuring installation is seamless. The flat back and slim depth will ensure a display that will stand the test of time.

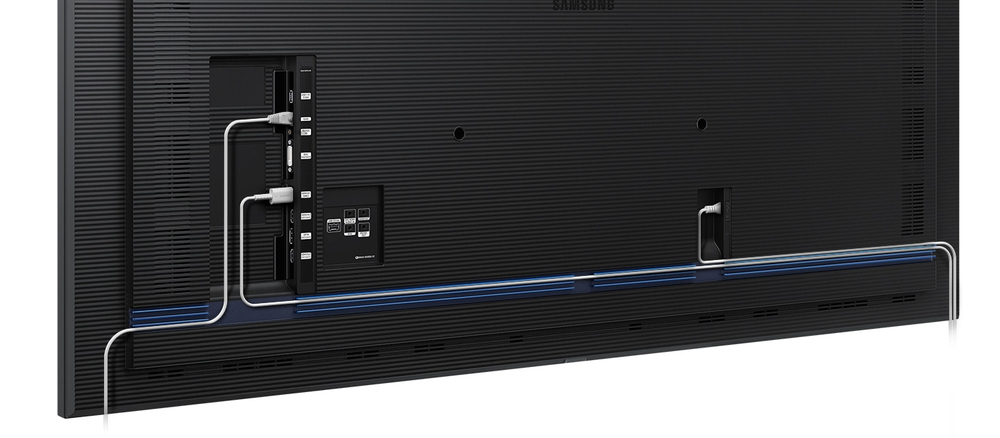

Clean cable management
With QMR's new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping experience for customers, even when the back of the display is visible.

Powerful, all-in-one solution
SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.

Samsung Workspace secured by Knox
With security provided by Knox, the displays feature Samsung Workspace which supports wireless cloud service access and control of a PC without needing a physical connection. Samsung Workspace simplifies meeting spaces while also improving security.

WiFi and Bluetooth built-in
Built-in WiFi and Bluetooth allow for more personalised and interactive services as well as simplifying how businesses showcase content. Whether its to make networking simpler or enabling interactive beacon technology in-store, QMR series displays help businesses move into the future of retail.

Industry standard certified
The QMR series guarantees dependable functionality and is environmentally sustainable. Electromagnetic compatibility (EMC) Class B compliant, meeting strict safety and reliability standards for operation, the displays are also registered by EPEAT, the global ecolabel for IT.
Samsungs new QMR displays cut through the clutter to deliver best-in-class UHD resolution, as well as intelligent UHD upscaling and rich flawless colours with Dynamic Crystal Colour - all in a slim design.
Incredible 4K picture quality
Samsungs new QMR series provides ultra high-definition 4K resolution, creating lifelike images with sharper picture quality than ever before.
Intelligent UHD upscaling
Samsungs cutting-edge intelligent UHD upscaling technology performs edge restoration and noise reduction to deliver perfect UHD picture quality even with lower resolution content. This “future-proof” solution ensures best-in-class picture quality regardless of the original content resolution.
Dynamic Crystal Colour
The QMR series features Dynamic Crystal Colour, using 10 bit processing for flawless colour expression, allowing viewers to enjoy a wider spectrum of colours up to one billion shades. HDR+ functionality converts standard definition content to HDR quality for sharper contrast and more vivid colours.
Perfect view with non-glare display
The QMR series features reliable, non-glare panels that provide better visibility from all angles, anytime of day. This allows businesses to deliver accurate information 24/7 in locations where clear and accurate information is crucial, such as airports and commuter stations.
Slim and symmetrical design
The QMR series features an all-new symmetric design simplifying wall mounting and ensuring installation is seamless. The flat back and slim depth will ensure a display that will stand the test of time.
Clean cable management
With QMR's new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping experience for customers, even when the back of the display is visible.
Powerful, all-in-one solution
SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.
Samsung Workspace secured by Knox
With security provided by Knox, the displays feature Samsung Workspace which supports wireless cloud service access and control of a PC without needing a physical connection. Samsung Workspace simplifies meeting spaces while also improving security.
WiFi and Bluetooth built-in
Built-in WiFi and Bluetooth allow for more personalised and interactive services as well as simplifying how businesses showcase content. Whether its to make networking simpler or enabling interactive beacon technology in-store, QMR series displays help businesses move into the future of retail.
Industry standard certified
The QMR series guarantees dependable functionality and is environmentally sustainable. Electromagnetic compatibility (EMC) Class B compliant, meeting strict safety and reliability standards for operation, the displays are also registered by EPEAT, the global ecolabel for IT.
