Philips LCD monitor with SmoothTouch 242B9T/00
SKU
242B9T/00
- B Line
- 24 (23.8"/60.5 cm diag.)
- Full HD (1920 x 1080)
Category: Computer Monitors
SmartStand with adjustable angles, boosts productivity
Philips SmartStand allows for flexible adjustment of the screen. Its Z-type structure with smooth tilt, height adjustment and folding capabilities enables you to use it in various ergonomic positions. You can set the stand in upright position for better touch control or recline it backwards, making it easy for you to draw or annotate. It even allows you to put the screen almost flat on the table for some applications when required.
A sturdy water- and dust-resistant touch-screen monitor for flexible use anywhere, with articulating stand to fit angles you need. Offering simple and intuitive use across applications, greatly boosts productivity.
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 250 cd/m² |
| Screen shape | Flat |
| Dynamic contrast ratio marketing name | SmartContrast |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Pixel density | 93 ppi |
| DDC/CI | Yes |
| Colour gamut | 72% |
| Maximum refresh rate | 60 Hz |
| Display surface | Gloss |
| HD type | Full HD |
| Display technology | LCD |
| Contrast ratio (dynamic) | 50000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.275 x 0.275 mm |
| Horizontal scan range | 30 - 85 kHz |
| Vertical scan range | 48 - 75 Hz |
| Aspect ratio | 16:9 |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Digital horizontal frequency | 30 - 85 kHz |
| Digital vertical frequency | 48 - 75 Hz |
| Separate H/V sync | Yes |
| Sync-on-green (SOG) | Yes |
| 3D | No |
| Backlight type | W-LED |
| Display resolution | 1920 x 1080 pixels |
| Response time | 5 ms |
| Display diagonal | 60.5 cm (23.8") |
| Contrast ratio (typical) | 1000:1 |
| Display panel size | 23.8 inch/60.5 cm |
| Surface hardness | 7H |
| NTSC coverage (typical) | 72% |
| Touchscreen type | Tabletop |
| Touchscreen | No |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Display diagonal (metric) | 60.5 cm |
| Display sRGB | Yes |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| LED backlight | Yes |
| Display brightness | 250 cd/m² |
| Colour gamut standard | sRGB, NTSC |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Mean time between failures (MTBF) | 70000 h |
| Built-in microphone | No |
| Built-in camera | No |
| AMD FreeSync | No |
| Compatible operating systems | Windows 11/10/8.1/8/7 |
| NVIDIA G-SYNC | No |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Component video sync | Separate Sync, Sync-on-green (SOG) |
| OmniTapps Multitouch compatibility | No |
| Palm rejection | Yes |
| EasyRead mode | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 20 |
| On Screen Display (OSD) languages | Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian |
| Plug and Play | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in microphone | No |
| Built-in camera | No |
| TV tuner integrated | No |
| Design | |
| Market positioning | Home |
| Heavy metals free | Hg (mercury) |
| Feet colour | Black |
| Certification | CE Mark, FCC Class B, SEMKO, EPA, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Mean time between failures (MTBF) | 70000 h |
| Exterior finish type | Textured |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 2 |
| Headphone out | Yes |
| DVI port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1.4 |
| DisplayPorts quantity | 1.2 |
| HDCP | Yes |
| Audio input | Yes |
| Headphone outputs | 1 |
| PC Audio in | Yes |

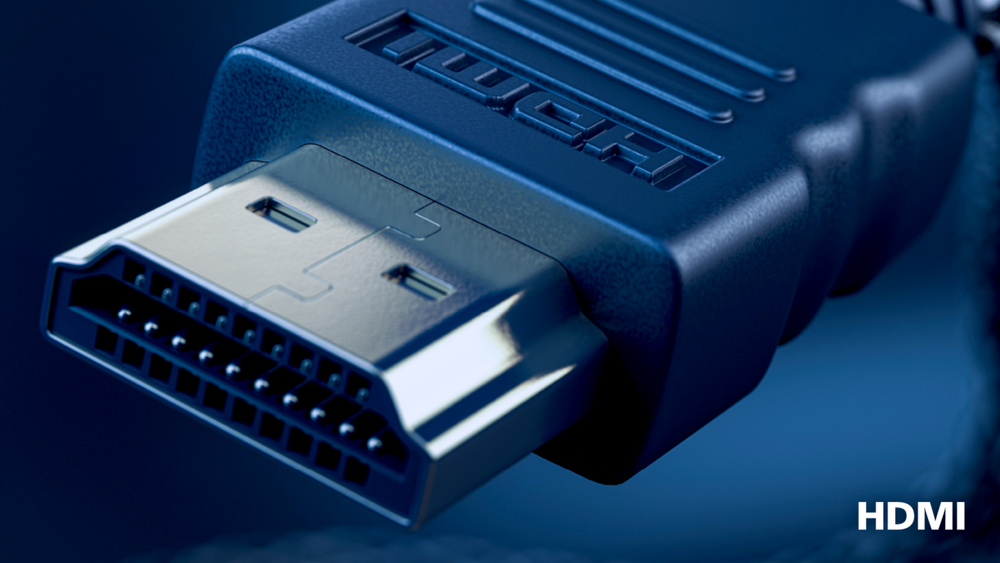

| HDMI | Yes |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| HDCP version | 1.4 |
| USB Touch port | Yes |
| TV tuner | |
| TV tuner integrated | No |
| Technical details | |
| Height (without stand) | 338 mm |
| Depth (without stand) | 50 mm |
| Width (without stand) | 554 mm |
| Mobile operating systems supported | Android 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4 |
| Feet colour | Black |
| Cable lock slot | Yes |
| Mean time between failures (MTBF) | 70000 h |
| HDMI | Yes |
| Display viewable area (HxV) | 527 x 296.5 mm |
| Built-in microphone | No |
| Product colour | Black |
| User controls | SmartImage; Input; Brightness; Menu; Power On/Off |
| Picture enhancement | SmartImage |
| Recyclable packaging material | 100% |
| Regulatory Approvals | CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS; cETLus |
| Front bezel colour | Black |
| Sustainability certificates | ENERGY STAR |
| Doesn't contain | Mercury, PVC/BFR |
| Compliance certificates | RoHS |
| Compatible operating systems | Windows 11/10/8.1/8/7 |
| Power supply type | External |
| Weight (with stand) | 8.15 kg |
| Folding angle | 70° |
| Touch method | Stylus, Finger, Glove* |
| Surface hardness | 7H |
| LowBlue mode | Yes |
| EasyRead mode | Yes |
| Touchscreen type | Tabletop |
| Touchscreen | No |
| Number of simultaneous touchpoints | 10 |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Bundled software | SmartControl |
| Ergonomics | |
|---|---|
| Wall mountable | Yes |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| LED indicators | Power, Stand-by |
| Swivelling | No |
| Tilt angle range | -5 - 90° |
| Pivot | No |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 20 |
| On Screen Display (OSD) languages | Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian |
| Plug and Play | Yes |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Palm rejection area | 30 x 30 mm |
| Tilt adjustment | Yes |
| Adjustable height (max) | 7.5 cm |
| Rotating | No |
| Power | |
| Power supply type | External |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 15.68 W |
| Power consumption (off) | 0.3 W |
| Power consumption (PowerSave) | 11.5 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Operational conditions | |
| Non-operating altitude | 0 - 12192 m |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3658 m |
| Weight & dimensions | |
| Height (without stand) | 338 mm |
| Depth (without stand) | 50 mm |
| Width (without stand) | 554 mm |
| Width (with stand) | 554 mm |
| Depth (with stand) | 227 mm |
| Height (with stand) | 413 mm |
| Weight (with stand) | 8.15 kg |
| Weight (without stand) | 4.86 kg |
| Package width | 620 mm |
| Package depth | 168 mm |
| Package height | 433 mm |
| Package weight | 11.1 kg |
| Packaging data | |
| Package width | 620 mm |
| Package depth | 168 mm |
| Package height | 433 mm |
| Package dimensions (WxDxH) | 620 x 433 x 168 mm |
| Package weight | 11.1 kg |
| Package type | Box |
| Stand included | Yes |
| Manual | Yes |
| Cables included | VGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC |
| Bundled software | SmartControl |
| Packaging content | |
| Stand included | Yes |
| Manual | Yes |
| Cables included | VGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC |
| Bundled software | SmartControl |
| Indication | |
| LED indicators | Power, Stand-by |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Doesn't contain | Mercury, PVC/BFR |
| Other features | |
| Compatible operating systems | Windows 11/10/8.1/8/7 |
| Heavy metals free | Hg (mercury) |
| Rotating | No |
| Mobile operating systems supported | Android 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4 |
| Package dimensions (WxDxH) | 620 x 433 x 168 mm |
| Signal input | VGA (Analogue); DVI-D (digital, HDCP); DisplayPort 1.2; HDMI 1.4 |
| Monitor sync input signal | Separate Sync; Sync on Green |
| Mean time between failures (MTBF) | 70000 h |
| Display viewable area (HxV) | 527 x 296.5 mm |
| Certification | CE Mark, FCC Class B, SEMKO, EPA, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC |
| TV tuner integrated | No |
| User controls | SmartImage; Input; Brightness; Menu; Power On/Off |
| Picture enhancement | SmartImage |
| Recyclable packaging material | 100% |
| Regulatory Approvals | CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS; cETLus |
| Folding angle | 70° |
| Touch method | Stylus, Finger, Glove* |
| LowBlue mode | Yes |
| EasyRead mode | Yes |
| Exterior finish type | Textured |
| International Protection (IP) code | IP65 |
| Compliance certificates | RoHS |
| Energy efficiency class (old) | A |
| Supplied AC adapter type | 1920 x 1080 @ 60 Hz |
| Height (without stand) | 338 mm |
| Depth (without stand) | 50 mm |
| Width (without stand) | 554 mm |
| HDMI | Yes |
| Surface hardness | 7H |
| Energy efficiency scale | A to G |
| Power supply type | External |
| Manual | Yes |
| Touchscreen type | Tabletop |
| Touchscreen | No |
| Number of simultaneous touchpoints | 10 |
| Package type | Box |
| Front bezel colour | Black |
| Recycling data | |
| Recyclable packaging material | 100% |
| Certificates | |
| Certification | CE Mark, FCC Class B, SEMKO, EPA, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
