ARCTIC P12 PWM PST RGB 0dB - Semi-Passive 120 Fan with Analog RGB
SKU
ACFAN00229A
Login for pricing
In Stock:
18 available
120 mm, 0 - 2000 RPM, 48.8 CFM/ 82.91 m³/h, 1.85 mm/H²O, PWM PST, RGB, 12 V DC, 131 g, Black
Category: Computer Cooling Systems
| Suitable for | Computer case |
|---|---|
| Type | Fan |
| SKU | ACFAN00229A |
| EAN | 4895213703260 |
| Manufacturer | ARCTIC |
| Availability | In Stock |
| Product Manuals (HTML) |
View Manual |
| PDF URLs |
View PDF |
RGB FOR FULL COLOURS
The P12 PWM PST RGB 0dB has 12 analogue RGB LEDs in the fan barrel. These can be controlled uniformly and are compatible with the common RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the RGB mainboard connection or via an external controller and synchronised with the illumination of other hardware.

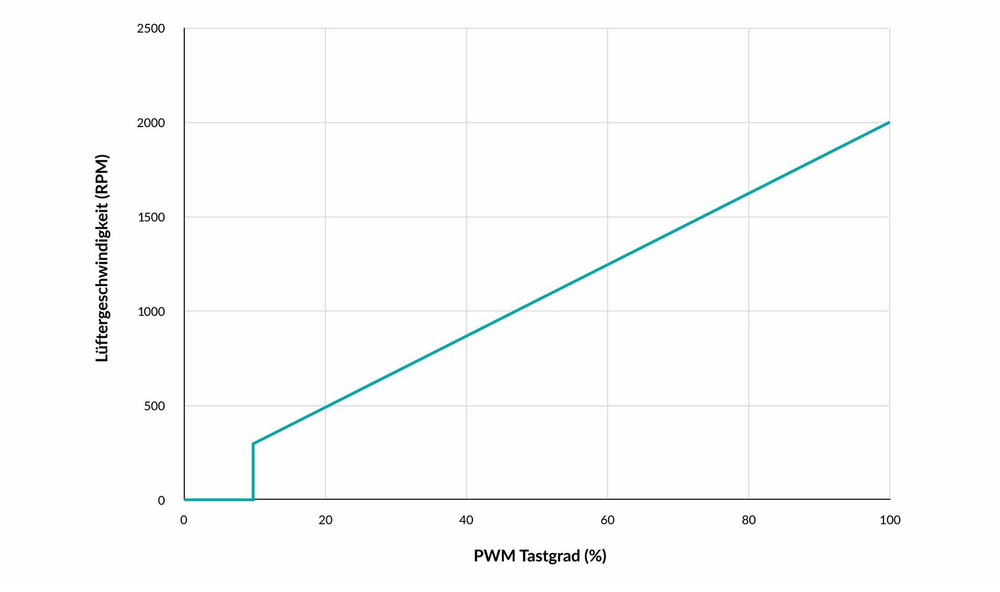

0dB MODE - ZERO RPM
The speed of the P12 PWM PST RGB 0dB can be throttled to a standstill via PWM. This allows for silent operation in IDLE and at the same time guarantees maximum performance when needed.

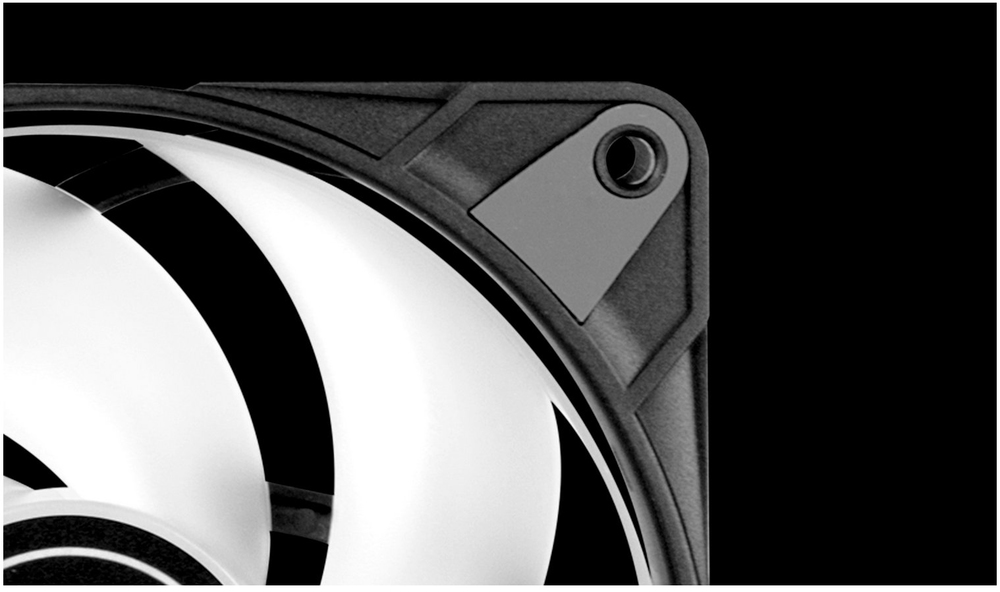

MAXIMUM SMOOTHNESS, MINIMUM VIBRATION
The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P12 PWM PST RGB 0dB has rubberised contact surfaces and thus reduces audible vibrations to a minimum.

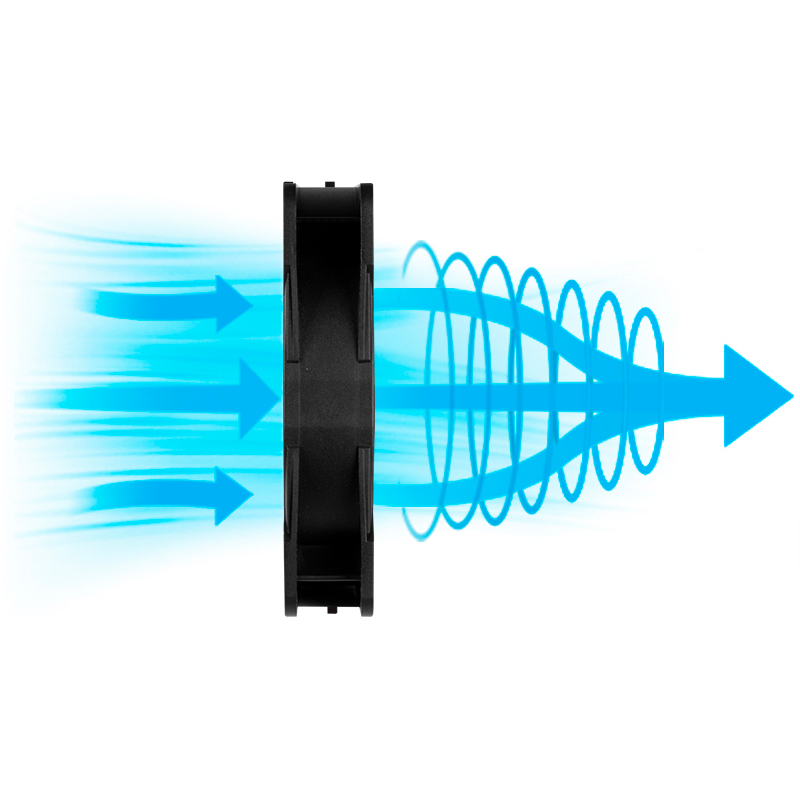

OPTIMISED FOR HIGH STATIC PRESSURE
The P12 PWM PST RGB 0dB operates with a focused airflow and a high static pressure. The fan thus guarantees extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters.

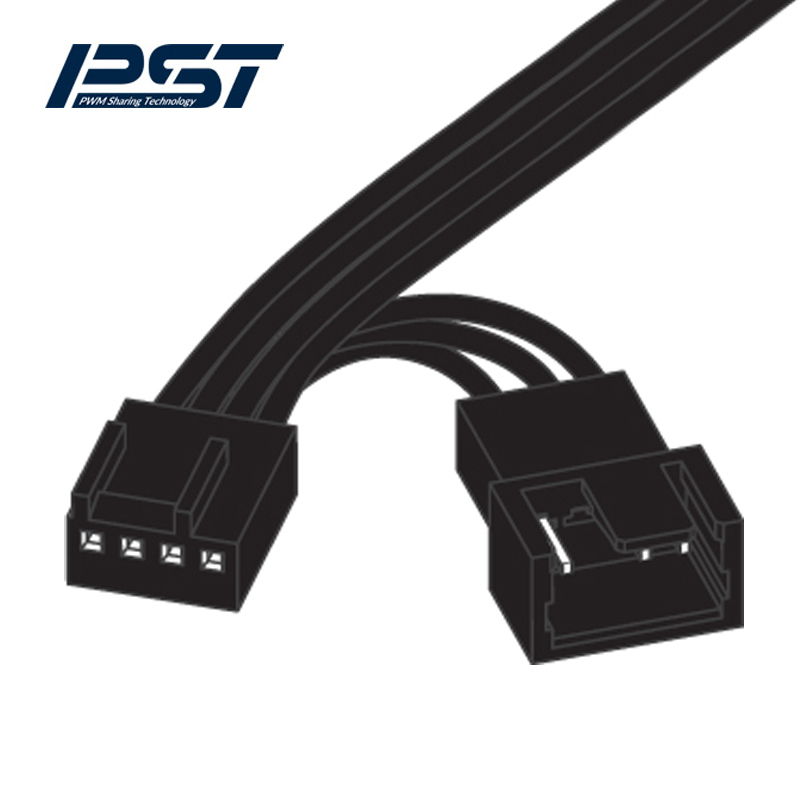

0 TO 2000 RPM CONTROLLED VIA PWM PST
With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P12 PWM PST RGB 0dB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.

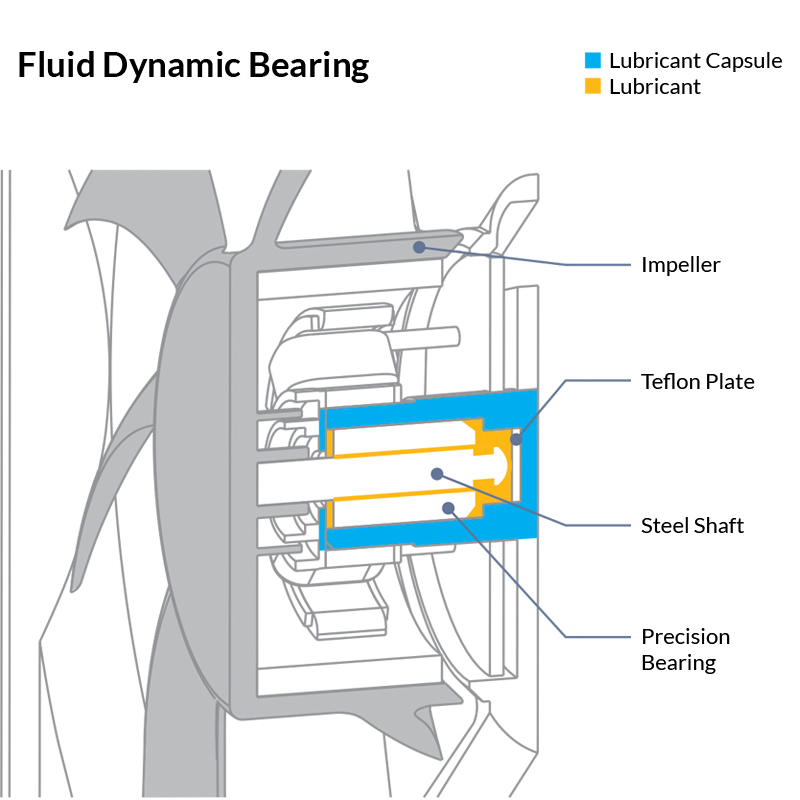

HIGH QUALITY PLAIN BEARING
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. In this way, less heat develops, less bearing noise is generated and the service life of the fan is extended.
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin + 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (max) | 2000 RPM |
| Noise level | 0.3 sone |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Type | Fan |
| Operating temperature (T-T) | 0 - 40 °C |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Maximum airflow | 48.8 cfm |
| Minimum air pressure | 1.85 mmH2O |
| Airflow | 82.91 m³/h |
| Number of fans | 3 fan(s) |
| Quantity per pack | 3 pc(s) |
| Design | |
| Fan connector | 4-pin + 4-pin |
| Number of fans | 3 fan(s) |
| Product colour | Black |
| Cable length | 0.4 m |
| Illumination LED | Yes |
| Technical details | |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Maximum airflow | 48.8 cfm |
| Minimum air pressure | 1.85 mmH2O |
| Airflow | 82.91 m³/h |
| Number of fans | 3 fan(s) |
| Cable length | 0.4 m |
| Fan connector | 4-pin + 4-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 4-pin + 4-pin |
| Power | |
| Starting voltage | 5 V |
| Voltage | 12 V |
| Rated current | 0.11 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Package depth | 124 mm |
| Package width | 103 mm |
| Package height | 127 mm |
| Fan weight | 131 g |
| Package weight | 644 g |
| Cable length | 0.4 m |
| Packaging data | |
| Package depth | 124 mm |
| Package width | 103 mm |
| Package height | 127 mm |
| Package weight | 644 g |
| Other features | |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
